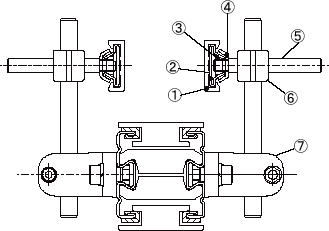

Standard guide rail example
parts
@
Solidur guide rail
A
Standard guide rail
B
Trapezoid nut
C
Lock plate
D
Adjust pin
E
Cross block
F
s clamp
It is not recommended to use the standard guide rail in wet environment because there is no drain holes.Flat bar or round bar is recommended.
@
