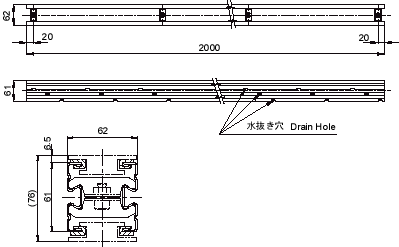

30-UT straight frame

Specification

Frame SUS304
Standard length 2000mm
Weight 6.5kg/standard length

Standard length includes

rails x8m

Trapezoid nut x10pcs

Lozenge nut x4pcs

Connecting joint x2pcs

@

Give attention the the direction of frame,bolts and nuts.
