 CONVEYOR



U-TOP SYSTEM

The versatile new 3 dimensional U-TOP conveyor system are composed of standardized units such as drive, idler, straight, turn disk and curve. Each unit are compact and well designed to ensure safety and quick assembly for various layout. The main frame is made of corrosion resistant stainless steel to meet the sanitation requirement of beverage and food production plant. The plastic conveyor chain have a good carry face and sliding properties to handle paper containers, PET bottles, cans, cups very well. It also curve in small radius of 150mm.



U-TOP System introduction (2.45MB)



Series Details

Catalogue

PDF

Features

 30UT

Details

30UT

(1.13MB)

Chain Width60mm

Light to Medium Load

 30UTW

Details

30UTW

(1.02MB)

Chain Width80mm

Light to Medium Load

 36UTN

Details

36UTN

(945KB)

Chain Width100mm

Medium to Heavy Load

 36UTW Details 36UTW
(954KB)

Chain Width120mm

Medium to Heavy Load

 36AK Details 36AK
(1.04MB)
Incline

  Other

Details

U-Grip (838KB)
Spiral Tower
(1.11MB)

Optional Parts (1.51MB)

Vertical, Incline, etc

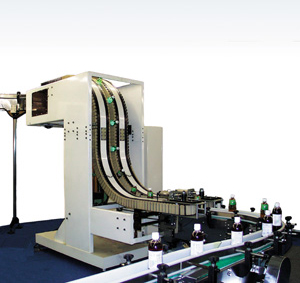

TransGrip is designed to grip products for elevating or lowering.The grip width can be easily and accurately adjusted to handle various containers. The conveyor are capable of high speed operation and it is quiet. Bottle rinser using TransGrip is also available.

Catalogue page PDF

TransGrip (207KB)
