Top Page  > MYDEX Key Position
Tatum point of input and output shafts

Relation of Key ways of input and output shafts are organized as following.

Index Types

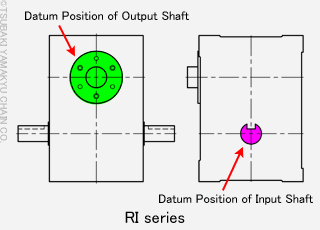

Datum Position of RI Series

カム画像

Key position in the timing chart

α・・・ Cam Index Angle (°), β・・・ Dwell Angele (°), S・・・ Number of Stops

シングルドゥエルカムシングルドゥエルカム

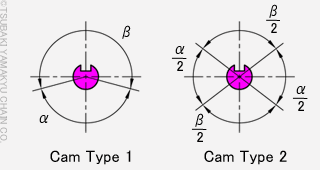

Datum Position of Input Shaft

The keyway position in the timing chart is datum position of its input shaft. As the right diagram, it is set up in intermediate position of its dwelling interval. Also, if the mark-off line with keyless goes by, a mark-off line is incised perpendicularly from the center of the shaft end face as shown in the right diagram.

右手カム図

Datum Position of Output Shaft

For datum position of the output shaft for standard specifications, please refer to the dimensinal drawings of each series.

● Shaft Type: Direction of the keyway ● Flange Type: Position of the mounting tapped hole ● If there is no keyway and tapped hole, a mark-off line is incised perpendicularly from the center of the shaft end face as a keyway position or a datum tapped hole in the dimensional drawing.

Oscillating Types

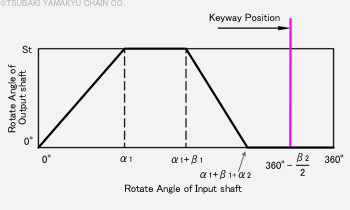

Keyway position in timing chart

右手カム図

α1・・・ First Index Angle (°), α2・・・ Second index Angle (°) β1・・・ First Dwell Angle (°), β2・・・ Second Dwell Angle (°) St・・・ Oscillating Angle

Datum Position of RO Series

右手カム図

Datum Position of Input Shaft

The keyway position in the timing chart is datum position of its input shaft. As the right diagram, it is set up in intermediate position of its dwelling interval. Also, if the mark-off line with keyless goes by, a mark-off line is incised perpendicularly from the center of the shaft end face as shown in the right diagram. 右手カム図

Datum Position of Output Shaft

For datum position of the output shaft for standard specifications, please refer to the dimensinal drawings of its respective series.

● Shaft Type: Direction of the keyway ● Flange Type: Position of the mounting tapped hole ● If there is no keyway and tapped hole, a mark-off line is incised perpendicularly from the center of the shaft end face as a keyway position or a datum tapped hole in the dimensional drawing.
