MYDEX Indexer
RIシリーズTLXシリーズ ROシリーズ
ピックアンドプレース RI ローラーギヤインデクサー画像
RIシリーズ
TLXシリーズ

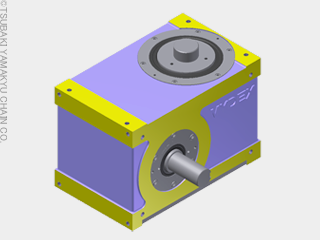

MYDEX RI (Roller Gear Indexer) Series are an intermittent indexing system (Indexer) with a roller gear cam mechanism orthogonally combined with a turret, which is radially-arranged roller gear cams and cam followers. It is the most orthodox indexer and we provide a wide range of indexers so that it can be used for all of the automated machines. They have excelent performance records of sefety, durability and reliability.

Features 間欠割出
Center Distance : 32 - 254mm
Number of Stops : 2 - 24
Cam Index Angle : 90°- 330°
Zero-backlash
Available to all the direction of gravitational force, re
gardless of mounting positions
Possible to combine with all the option parts










ピックアンドプレース

RI ローラーギヤインデクサー画像

TLXシリーズRIシリーズ

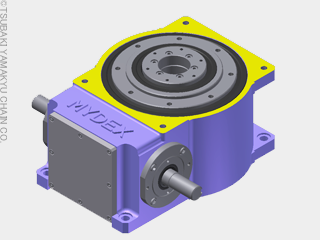

Multi-index Type Roller Gear Indexer TLX Series MYDEX TLX (Thin & Large through Bore Indexer) series are the same roller gear cam mechanism as RI series. The main feature is that a large-diameter turret suitable for multi-index (multi-process) and a hollow shaft which has an industry leading diameter. an ultraslim and does not occupy too much mounting space and electric wirering and plumbing, etc. can be conducted easily in a large hollow shaft that is ideal for a rotally table type of machinery.
Features 間欠割出
Center Distance : 75 - 450mm
Number of Stops : 4 - 40
Cam Index Angle : 90°- 330°
Compact types have a standard large hollow shaft; Inside diameter 40 - 80mm
Available to all the direction of gravitational force, regardless of mounting positions
Possible to combine with all the option parts
