MYDEX Pick and Place
RIシリーズTLXシリーズPIシリーズ
ROシリーズPOシリーズPPシリーズ
ピックアンドプレース
RIシリーズ
TLXシリーズ

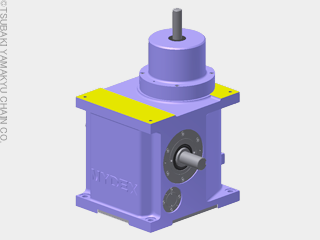

MYDEX PP (Pick & Place) series are composite devices combined with roller gear cams and conjugate cams, and equiped with advaitages of high speed, accuracy, torque and durability in both mechanism. They can be more save-spaced than conventional pick & place and 2 types of motion (intermittent indexing & vertical stroke, oscillating & vertical stroke) can surely be performed. In addition, both motions can be set up freely in combination and are available in various fields. There are 2 types as follows to combine motions.
● Intermittent Indexing + Stroke: PPI (Pick&Pleace Indexer)
● Oscillating + Stroke: PPO (Pick&Pleace Oscillator)

Features 間欠割出間欠割出間欠割出
Center Distance :80 - 200mm
Oscillating Angle : 2 - 16
Timing : Option but depending on use conditions
Various optional Parts
Patent No. 3458306
